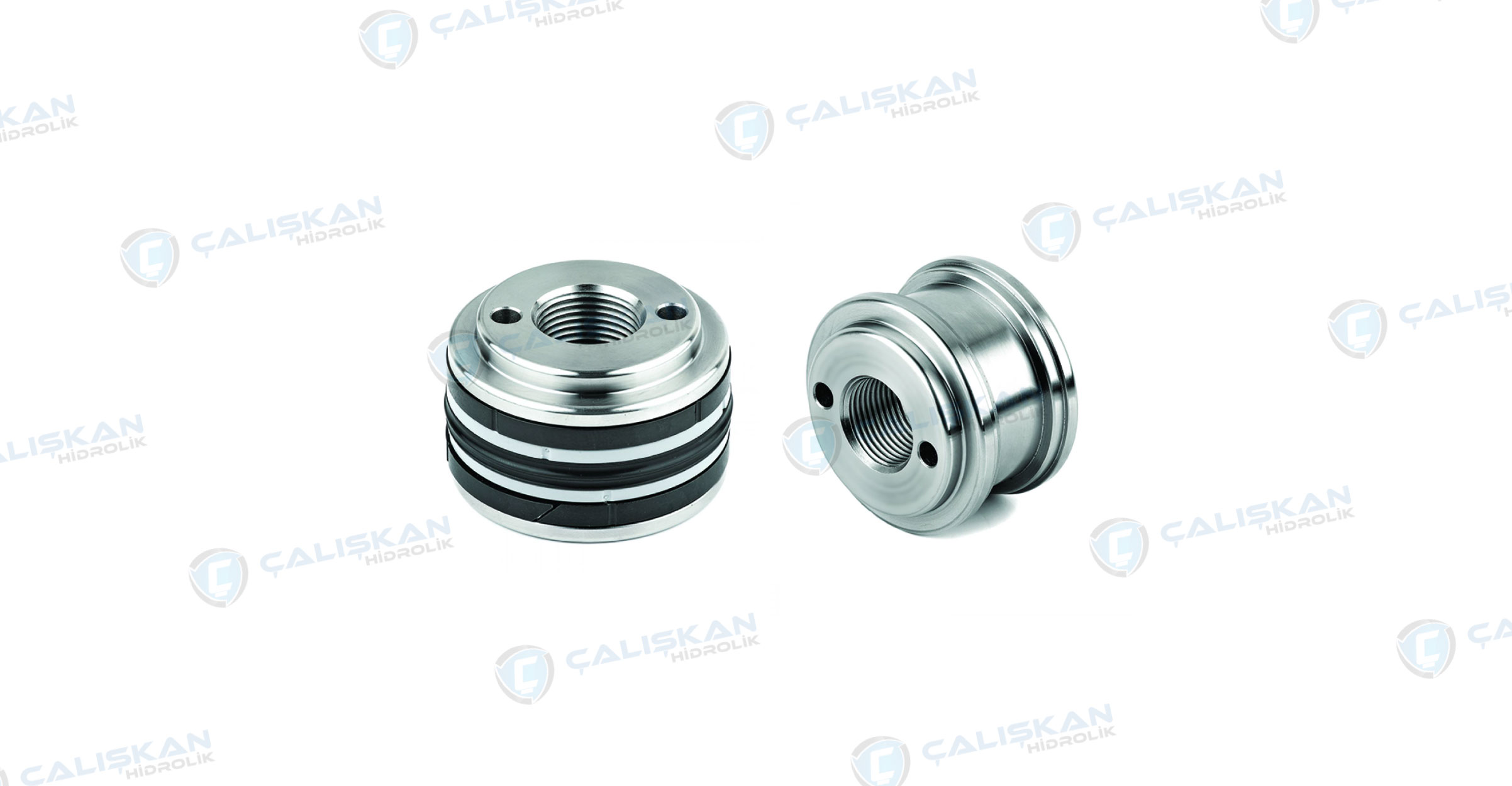

1040 / 1050 Çelik Piston Vidalı Tip

Sipariş No	Kompactset	Oring	D	D1	L	L1	Diş
ÇLS-30010	40x32x15,5x3,20	15x3	40	20	45	22.5	18x1,5
ÇLS-30020	45x35x16,40x6,35	15x3	45	20	45	22.5	18x1,5
ÇLS-30030	50x38x20,5x4,20	20x3	50	25	45	22.5	20x2
ÇLS-30040	55x39x20,5x3,10	20x3	55	25	45	22.5	20x2
ÇLS-30050	60x48x20,5x3,10	25x3	60	30	45	22.5	27x2
ÇLS-30060	63x51x20,5x4,20	25x3	63	30	45	22.5	27x2
ÇLS-30070	65x49x20,5x4,20	25x3	65	30	45	22.5	27x2
ÇLS-30080	70x58x20,5x4.20	25x3	70	30	45	22.5	27x2
ÇLS-30090	75x55x22,4x6,35	25x3	75	30	50	25	27x2
ÇLS-30100	80x66x22,4x5,20	30x3	80	35	50	25	30x2
ÇLS-30110	85x65x22,4x6,35	32x4	85	40	50	25	35x2
ÇLS-30120	90x76x22,4x5,20	32x4	90	40	50	25	35x2
ÇLS-30130	100x86x22,4x5,20	37x4	100	45	50	25	40x2
ÇLS-30140	110x96x22,4x5,20	37x4	110	45	50	25	40x2
ÇLS-30150	115x101x22,4x5,20	37x4	115	45	50	25	40x2
ÇLS-30160	120x106x22,4x5,20	42x4	120	50	50	25	45x2
ÇLS-30170	125x103x26,5x5,10	42x4	125	50	60	30	45x2
ÇLS-30180	130x105x25,4x6,35	52x4	130	60	60	30	50x2
ÇLS-30190	140x123x26,5x7,20	52x4	140	60	60	30	55x2
ÇLS-30200	150x125x25,4x6,35/1	57x4	150	65	60	30	60x2
ÇLS-30210	160x143x26,5x7,20	57x4	160	65	60	30	60x2
ÇLS-30220	170x145x25,4x12,70	62x4	170	70	65	30	65x2
ÇLS-30230	180x163x26,5x7,20	67x4	180	75	60	30	70x2
ÇLS-30240	190x165x22,4x12,7	77x4	190	85	65	30	75x2
ÇLS-30250	200x175x25,40x12,70/1	72x4	200	80	70	30	75x2
ÇLS-30260	220x190x35,40x6,35/1	82x4	220	90	70	30	85x2
ÇLS-30270	230x205x25.4x12.70	92x4	230	100	70	30	95x2.5
ÇLS-30280	250x225x25,40x12,70	92x4	250	100	70	30	95x2.5
